聚焦镜片-1064nm
一单片式聚焦镜-1064nm
本聚焦镜是由一片镜片组成，不含镜座。镜片材料是熔融石英，激光波长范围：1064nm/1030-1090nm
| 有效焦距 | 镜片直径 | 工作波长 | 镜片材料 |
| EFL(mm) | Lens Diameter(mm) | Wavelength | Lens Material |
| 40mm | Φ20mm/Φ30mm | 1030-1090nm | fused silica |
| 50mm | Φ20mm/Φ25mm/Φ25.4mm/Φ30mm | 1030-1090nm | fused silica |
| 60mm | Φ20mm/Φ25mm/Φ25.4mm/Φ30mm | 1030-1090nm | fused silica |
| 70mm | Φ20mm/Φ36mm | 1030-1090nm | fused silica |
| 75mm | Φ20mm/Φ28mm/Φ30mm/Φ36mm | 1030-1090nm | fused silica |
| 80mm | Φ20mm/Φ25.4mm/Φ30mm/Φ36mm/Φ41.5mm/Φ42mm/Φ50mm | 1030-1090nm | fused silica |
| 100mm | Φ20mm/Φ25mm/Φ25.4mm/Φ30mm/Φ36mm/Φ38.1mm/Φ41.5mm/Φ42mm/Φ50mm | 1030-1090nm | fused silica |
| 120mm | Φ20mm/Φ25mm/Φ25.4mm/Φ28mm/Φ30mm/Φ36mm/Φ38.1mm/Φ41.5mm/Φ42mm/Φ50mm | 1030-1090nm | fused silica |
| 125mm | Φ20mm/Φ25mm/Φ25.4mm/Φ28mm/Φ30mm/Φ36mm/Φ38.1mm/Φ41.5mm | 1030-1090nm | fused silica |
| 150mm | Φ20mm/Φ25mm/Φ25.4mm/Φ28mm/Φ30mm/Φ36mm/Φ38.1mm/Φ41.5mm/Φ42mm/Φ50mm | 1030-1090nm | fused silica |
| 175mm | Φ36mm/Φ41.5mm | 1030-1090nm | fused silica |
| 180mm | Φ36mm/Φ41.5mm/Φ42mm | 1030-1090nm | fused silica |
| 190mm | Φ36mm/Φ41.5mm/Φ50.8mm | 1030-1090nm | fused silica |
| 200mm | Φ20mm/Φ25.4mm/Φ28mm/Φ30mm/Φ36mm/Φ38.1mm/Φ41.5mm/Φ42mm/Φ50mm | 1030-1090nm | fused silica |
| 230mm | Φ20mm/Φ36mm/Φ41.5mm | 1030-1090nm | fused silica |
| 250mm | Φ20mm/Φ30mm/Φ36mm/Φ41.5mm/Φ50mm | 1030-1090nm | fused silica |
| 280mm | Φ20mm/Φ36mm/Φ41.5mm | 1030-1090nm | fused silica |
| 300mm | Φ20mm/Φ25.4mm/Φ30mm/Φ36mm/Φ50mm | 1030-1090nm | fused silica |
| 400mm | Φ20mm/Φ30mm | 1030-1090nm | fused silica |
二双片式聚焦镜-1064nm

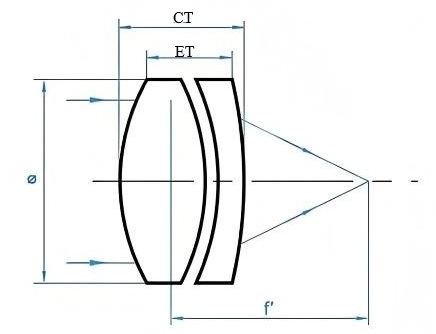

此聚焦镜是由2片镜片组成，2片镜片可以贴合在一起，像一片镜片一样安装，如下图所示。2片镜片之间无需隔断或胶合。本聚焦镜不含镜筒，镜片材料是熔融石英。激光波长：1064nm/1030-1090nm
| 有效焦距 | 镜片直径 | 工作波长 | 镜片材料 |
| EFL(mm) | Lens Diameter(mm) | Wavelength | Lens Material |
| 50mm | Φ30mm | 1030-1090nm | 熔融石英 |
| 60mm | Φ30mm | 1030-1090nm | 熔融石英 |
| 75mm | Φ25mm/Φ28mm/Φ30mm/Φ36mm | 1030-1090nm | 熔融石英 |
| 80mm | Φ28mm | 1030-1090nm | 熔融石英 |
| 100mm | Φ25mm/Φ28mm/Φ30mm/Φ36mm/Φ38.1mm | 1030-1090nm | 熔融石英 |
| 120mm | Φ38.1mm | 1030-1090nm | 熔融石英 |
| 125mm | Φ25mm/Φ28mm/Φ30mm/Φ36mm | 1030-1090nm | 熔融石英 |
| 150mm | Φ25mm/Φ28mm/Φ30mm/Φ36mm/Φ40mm | 1030-1090nm | 熔融石英 |
| 180mm | Φ36mm | 1030-1090nm | 熔融石英 |
| 200mm | Φ28mm/Φ30mm/Φ36mm/Φ38.1mm | 1030-1090nm | 熔融石英 |
| 230mm | Φ36mm | 1030-1090nm | 熔融石英 |
| 250mm | Φ28mm/Φ30mm/Φ36mm | 1030-1090nm | 熔融石英 |
| 280mm | Φ36mm | 1030-1090nm | 熔融石英 |
