focus lens -1064nm
1.Singlet Focusing lens -1064nm
The focusing lens consists of a single lens element and does not include a barrel.
The lens material is fused quartz, with a laser wavelength range of 1030–1090 nm.
| EFL(mm) | Lens Diameter(mm) | Wavelength | Lens Material |
| 40mm | Φ20mm/Φ30mm | 1030-1090nm | fused silica |
| 50mm | Φ20mm/Φ25mm/Φ25.4mm/Φ30mm | 1030-1090nm | fused silica |
| 60mm | Φ20mm/Φ25mm/Φ25.4mm/Φ30mm | 1030-1090nm | fused silica |
| 70mm | Φ20mm/Φ36mm | 1030-1090nm | fused silica |
| 75mm | Φ20mm/Φ28mm/Φ30mm/Φ36mm | 1030-1090nm | fused silica |
| 80mm | Φ20mm/Φ25.4mm/Φ30mm/Φ36mm/Φ41.5mm/Φ42mm/Φ50mm | 1030-1090nm | fused silica |
| 100mm | Φ20mm/Φ25mm/Φ25.4mm/Φ30mm/Φ36mm/Φ38.1mm/Φ41.5mm/Φ42mm/Φ50mm | 1030-1090nm | fused silica |
| 120mm | Φ20mm/Φ25mm/Φ25.4mm/Φ28mm/Φ30mm/Φ36mm/Φ38.1mm/Φ41.5mm/Φ42mm/Φ50mm | 1030-1090nm | fused silica |
| 125mm | Φ20mm/Φ25mm/Φ25.4mm/Φ28mm/Φ30mm/Φ36mm/Φ38.1mm/Φ41.5mm | 1030-1090nm | fused silica |
| 150mm | Φ20mm/Φ25mm/Φ25.4mm/Φ28mm/Φ30mm/Φ36mm/Φ38.1mm/Φ41.5mm/Φ42mm/Φ50mm | 1030-1090nm | fused silica |
| 175mm | Φ36mm/Φ41.5mm | 1030-1090nm | fused silica |
| 180mm | Φ36mm/Φ41.5mm/Φ42mm | 1030-1090nm | fused silica |
| 190mm | Φ36mm/Φ41.5mm/Φ50.8mm | 1030-1090nm | fused silica |
| 200mm | Φ20mm/Φ25.4mm/Φ28mm/Φ30mm/Φ36mm/Φ38.1mm/Φ41.5mm/Φ42mm/Φ50mm | 1030-1090nm | fused silica |
| 230mm | Φ20mm/Φ36mm/Φ41.5mm | 1030-1090nm | fused silica |
| 250mm | Φ20mm/Φ30mm/Φ36mm/Φ41.5mm/Φ50mm | 1030-1090nm | fused silica |
| 280mm | Φ20mm/Φ36mm/Φ41.5mm | 1030-1090nm | fused silica |
| 300mm | Φ20mm/Φ25.4mm/Φ30mm/Φ36mm/Φ50mm | 1030-1090nm | fused silica |
| 400mm | Φ20mm/Φ30mm | 1030-1090nm | fused silica |

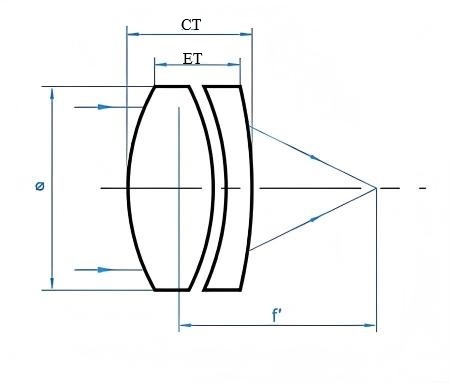

2.Doublet Focusing lens - 1064nm
The focusing lens consists of two lenses and does not include a barrel.
The lens material is fused quartz, with a laser wavelength range of 1030–1090 nm.
| EFL(mm) | Lens Diameter(mm) | Wavelength | Lens Material |
| 50mm | Φ30mm | 1030-1090nm | Fused silica |
| 60mm | Φ30mm | 1030-1090nm | Fused silica |
| 75mm | Φ25mm/Φ28mm/Φ30mm/Φ36mm | 1030-1090nm | Fused silica |
| 80mm | Φ28mm | 1030-1090nm | Fused silica |
| 100mm | Φ25mm/Φ28mm/Φ30mm/Φ36mm/Φ38.1mm | 1030-1090nm | Fused silica |
| 120mm | Φ38.1mm | 1030-1090nm | Fused silica |
| 125mm | Φ25mm/Φ28mm/Φ30mm/Φ36mm | 1030-1090nm | Fused silica |
| 150mm | Φ25mm/Φ28mm/Φ30mm/Φ36mm/Φ40mm | 1030-1090nm | Fused silica |
| 180mm | Φ36mm | 1030-1090nm | Fused silica |
| 200mm | Φ28mm/Φ30mm/Φ36mm/Φ38.1mm | 1030-1090nm | Fused silica |
| 230mm | Φ36mm | 1030-1090nm | Fused silica |
| 250mm | Φ28mm/Φ30mm/Φ36mm | 1030-1090nm | Fused silica |
| 280mm | Φ36mm | 1030-1090nm | Fused silica |
