反射镜-1064nm

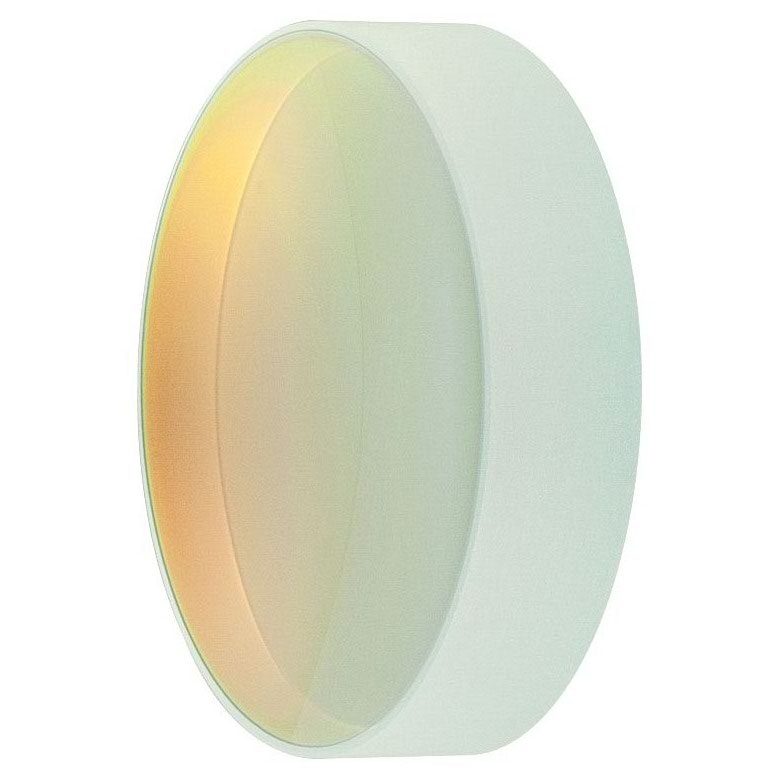

一45度反射镜-1064nm（熔融石英）

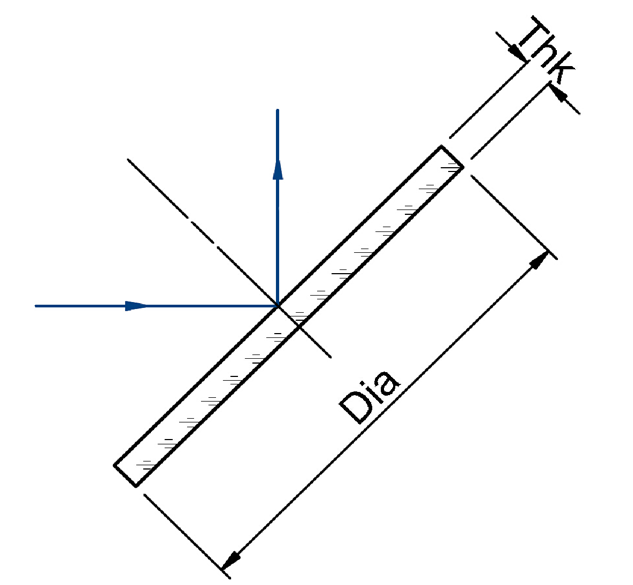

| 产品编号 | 材料 | 镜片直径 | 镜片厚度 | 波长 | 反射率 |
| Product ID | Material | Dia(mm) | Thk(mm) | Wavelength | R (%) |
| RFS-1064-D10-T2 | Fused Silica | Φ10.0 | 2.0 | 1064nm | >99.7% |
| RFS-1064-D12.7-T4 | Fused Silica | Φ12.7 | 4.0 | 1064nm | >99.7% |
| RFS-1064-D20-T2 | Fused Silica | Φ20.0 | 2.0 | 1064nm | >99.7% |
| RFS-1064-D20-T3 | Fused Silica | Φ20.0 | 3.0 | 1064nm | >99.7% |
| RFS-1064-D20-T5 | Fused Silica | Φ20.0 | 5.0 | 1064nm | >99.7% |
| RFS-1064-D25-T3 | Fused Silica | Φ25.0 | 3.0 | 1064nm | >99.7% |
| RFS-1064-D25-T4 | Fused Silica | Φ25.0 | 4.0 | 1064nm | >99.7% |
| RFS-1064-D25-T5 | Fused Silica | Φ25.0 | 5.0 | 1064nm | >99.7% |
| RFS-1064-D25.4-T3 | Fused Silica | Φ25.4 | 3.0 | 1064nm | >99.7% |
| RFS-1064-D25.4-T5 | Fused Silica | Φ25.4 | 5.0 | 1064nm | >99.7% |
| RFS-1064-D30-T3 | Fused Silica | Φ30.0 | 3.0 | 1064nm | >99.7% |
| RFS-1064-D30-T4 | Fused Silica | Φ30.0 | 4.0 | 1064nm | >99.7% |
| RFS-1064-D30-T5 | Fused Silica | Φ30.0 | 5.0 | 1064nm | >99.7% |
| RFS-1064-D38.1-T6 | Fused Silica | Φ38.1 | 6.0 | 1064nm | >99.7% |
| RFS-1064-D40-T2 | Fused Silica | Φ40.0 | 2.0 | 1064nm | >99.7% |
| RFS-1064-D40-T3 | Fused Silica | Φ40.0 | 3.0 | 1064nm | >99.7% |
| RFS-1064-D40-T5 | Fused Silica | Φ40.0 | 5.0 | 1064nm | >99.7% |
| RFS-1064-D45-T3 | Fused Silica | Φ45.0 | 3.0 | 1064nm | >99.7% |
| RFS-1064-D45-T4 | Fused Silica | Φ45.0 | 4.0 | 1064nm | >99.7% |
| RFS-1064-D45-T5 | Fused Silica | Φ45.0 | 5.0 | 1064nm | >99.7% |
| RFS-1064-D50-T3 | Fused Silica | Φ50.0 | 3.0 | 1064nm | >99.7% |
| RFS-1064-D50-T10 | Fused Silica | Φ50.0 | 10.0 | 1064nm | >99.7% |
| RFS-1064-D50.8-T4 | Fused Silica | Φ50.8 | 4.0 | 1064nm | >99.7% |
| RFS-1064-D50.8-T6 | Fused Silica | Φ50.8 | 6.0 | 1064nm | >99.7% |
| RFS-1064-D60-T3 | Fused Silica | Φ60.0 | 3.0 | 1064nm | >99.7% |
| RFS-1064-D60-T5 | Fused Silica | Φ60.0 | 5.0 | 1064nm | >99.7% |
| RFS-1064-D60-T6 | Fused Silica | Φ60.0 | 6.0 | 1064nm | >99.7% |
