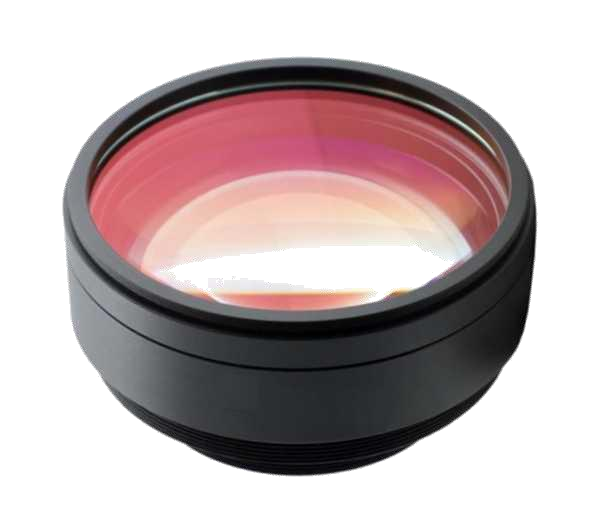

Achromatic F-Theta Scan Lens-1064nm
Achromatic F-Theta Scan Lens-1064nm
| wave- | EFL | Scan | Input | Scan | Center-Edge | WD | Outer | Screw | |
| Product ID | length | Field | Beam | Angle | Spot Size | DiaXL | Thread | ||
| （nm） | （mm） | (mm) | Φ(mm) | θ(°) | Φ(µm) | (mm) | (mm) | (mm) | |
| SLA-1064-633-100-60-D14 | 1064/633 | 100 | 60X60 | 10 | ±25º | 19-22.7 | 79.5 | Φ85X91 | M55X1 |
| SLA-1064-633-163-100-D12 | 1064/633 | 163 | 100X100 | 12 | ±26º | 26-29 | 157.6 | Φ99X88 | M85X1 |
| SLA-1064-633-170-110-D30 | 1064/633 | 170 | 110X110 | 30 | ±25º | 25-30 | 202.5 | Φ130X67 | M112X1 |
| SLA-1064-633-210-130-D30 | 1064/633 | 210 | 130X130 | 30 | ±25º | 20-20 | 243.4 | Φ138X81 | M102X1 |
| SLA-1064-633-254-150-D30 | 1064/633 | 254 | 150X150 | 30 | ±25º | 23-24 | 306.9 | Φ140X69 | M102X1 |
| SLA-1064-633-260-180-D15 | 1064/633 | 260 | 180X180 | 15 | ±25º | 33-36 | 254.4 | Φ137X106 | M85X1 |
